In the PCB manufacturing and assembly process, pad design is one of the most critical aspects influencing product quality, reliability, and production efficiency. However, it’s not uncommon to find that PCB designers overlook the standards and best practices associated with pad layout. This often results in pads that are either too small or too large, leading to multiple downstream issues during the fabrication and soldering processes.
Pad design may seem like a minor detail, but its implications are substantial—especially when it comes to the solder joint integrity, electrical connectivity, and thermal performance of the final product.
Why Pad Design Matters
When components are placed on a PCB, they rely on conductive pads to establish mechanical stability and electrical connectivity. These pads are connected through traces to form the circuit. If the pads are not properly sized or shaped, problems such as insufficient solder joints, component misalignment, or even pad lifting during rework can occur.
Inadequate pad design can cause reflow defects, poor mechanical adhesion, or even complete circuit failure—especially when soldering by hand. Using excessively high temperatures or incorrect soldering tools can damage or detach the pads entirely, leading to irreparable PCB damage.
Key Pad Design Standards
To minimize such risks and ensure a smooth production process, the following pad design guidelines are widely accepted in the industry:
- The minimum single-side annular ring (pad edge to hole wall) should be no less than 0.25 mm.
- The maximum pad diameter should not exceed three times the diameter of the component lead hole.
- For high-density PCBs, rectangular or oval pads are preferred over round ones to optimize space usage.
- For single-sided boards, the minimum pad diameter should be 1.6 mm. For double-sided low-power circuits, it's sufficient to add 0.5 mm to the hole diameter.
- For pads with hole diameters greater than 1.2 mm or pad diameters over 3.0 mm, petal-shaped or diamond-shaped pads are recommended to maintain solder stability.
- Wave soldering or machine-inserted components require teardrop pad designs (drip-style) along the lead bend direction to secure proper wetting and joint formation.
- Pads placed on large copper areas should adopt spoke or daisy-chain patterns to avoid thermal imbalance and prevent cold solder joints.
With more than 10 years in the field of PCB prototype and fabrication, PCBYES has consistently assisted customers worldwide in optimizing their layout designs to meet production-level quality and cost targets. Whether you're building high-frequency, multi-layer, or compact designs, our engineers are here to help with pad layout optimization as part of our turnkey PCBA services.
Manufacturing Guidelines for Pad Hole Dimensions

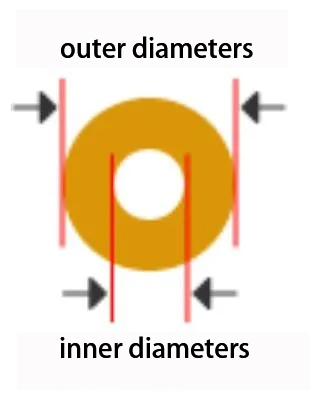

Precision in drill-to-pad ratio is essential, particularly in multi-layer PCBs. Here are the commonly accepted pad size parameters at PCBYES:
- Double-layer boards: Minimum hole size 0.2 mm (inner diameter) / 0.5 mm (outer diameter)
- Multi-layer boards: Minimum hole size 0.15 mm (inner) / 0.25 mm (outer)
- The recommended difference between the outer and inner diameters is 0.1 mm, with a difference of 0.15 mm or greater being optimal.
- Minimum mechanical hole size should be at least 0.2 mm to ensure reliable plating and structural strength.
Inappropriate pad size or annular ring clearance not only reduces mechanical bonding strength but also increases the risk of open circuits during the soldering or reflow process.
The Risks of Poor Pad Design
Poorly designed pads may result in:
- Inaccurate component placement
- Reduced electrical contact and signal reliability
- Increased solder defects like bridges, voids, or tombstoning
- Higher failure rates during thermal cycling or mechanical stress
- Slower assembly throughput
- Higher rework and maintenance costs
In contrast, properly designed pads:
- Improve production yield
- Enhance solderability
- Reduce rework and defects
- Boost reliability in harsh environments
- Lower manufacturing costs over time
At PCBYES, we integrate manufacturing feedback into every stage of the design verification process to ensure your layout meets IPC standards and is fully manufacturable without additional revisions. Our experienced engineers work closely with your design files to ensure optimal pad geometry and spacing for both automated and manual soldering processes.
Special Considerations for Hand Soldering
When it comes to manual soldering, additional precautions must be taken. Never use extremely high temperatures with soldering irons or molten solder pots on small or sensitive pads, as this can cause them to delaminate from the substrate. Always follow controlled soldering profiles and tools specified for prototype or small batch assembly.
Pad design plays a fundamental role in the overall quality and performance of a printed circuit board. From minimizing production defects to enhancing durability and electrical performance, every pad must be intentionally designed to meet manufacturing requirements.
By following established standards and leveraging the support of experienced manufacturers like PCBYES, you can ensure that your designs transition smoothly from concept to production—delivering superior reliability at optimized cost. Let us help you design with manufacturing in mind and become your trusted partner in every aspect of your PCB or PCBA journey.
