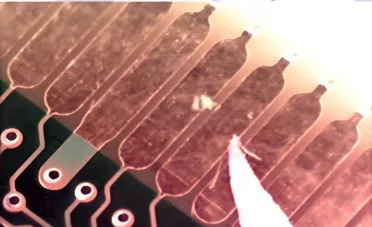

Solder mask contamination is a frequently encountered issue during the PCB (Printed Circuit Board) manufacturing process. It can significantly affect not only the aesthetic quality of the board but also the performance, reliability, and solderability of the final PCBA (Printed Circuit Board Assembly). The term "solder mask contamination" refers to the presence of solder mask ink in unintended areas, which can lead to a variety of downstream defects.
Today, we will analyze the root causes of solder mask contamination, its adverse impacts on PCBA, and effective countermeasures to mitigate the issue. These insights are based on real-world manufacturing practices and aim to support engineers and manufacturers in improving their PCB production quality.
1. Root Causes of Solder Mask Contamination
1.1 Unintentional Contact After Solder Mask Printing
One of the most common causes of contamination occurs when the PCB panel is inadvertently touched after the solder mask ink is printed but before it has fully dried or cured. This kind of mechanical disturbance can smear or transfer solder mask material to areas where it shouldn't be applied, such as pad surfaces or component mounting points.
1.2 Inadequate Rinsing of the Developer Solution
Another major contributor is improper cleaning after the development stage. If the developer solution used to remove uncured solder mask isn't thoroughly rinsed off, residues can interact with the remaining solder mask and cause irregular spreading or re-deposition. This often results in random patches of solder mask ink forming in critical areas like vias, test points, or solder pads.
2. Potential Impact on PCBA Performance and Reliability
2.1 Soldering Defects
Contamination of solder pads with solder mask ink can lead to poor wetting during the soldering process. This impairs the formation of reliable solder joints, causing defects such as cold solder joints, insufficient solder, or open circuits. These issues significantly compromise the electrical and mechanical integrity of the assembled PCB.
2.2 Reduced Electrical Conductivity
If the solder mask encroaches upon copper traces, through-holes, or component leads, it can create an insulating barrier that obstructs current flow. This results in increased resistance or complete disconnection in signal or power paths, which can cause intermittent failures or total circuit malfunction.
3. Effective Countermeasures
To minimize the occurrence of solder mask contamination, manufacturers must implement targeted process control measures.
3.1 Preventing Unintentional Touch After Solder Mask Application
Operator Training and Awareness: It is crucial to provide thorough training to operators, emphasizing the importance of handling PCBs only after the solder mask has fully dried or cured. Clear SOPs (Standard Operating Procedures) should be enforced.
Physical Isolation: Establish designated zones or protective enclosures for solder mask drying to avoid unintentional interference. Use conveyors with protective covers or physical barriers in post-printing areas.
3.2 Ensuring Complete Removal of Developer Residues
Optimized Rinsing Process: Post-development rinsing should be enhanced by increasing rinse cycles or prolonging exposure time. Ensure sufficient pressure and flow rate in rinse spray systems to eliminate all residues.
Regular Equipment Maintenance: The cleaning system must be routinely inspected for clogging, misalignment, or wear. Cleaning fluids and nozzles should be maintained in optimal condition. It's essential to monitor and replace cleaning agents periodically to maintain performance.
Inline Process Monitoring: Incorporate AOI (Automated Optical Inspection) or vision-based systems after the solder mask development stage to detect early signs of contamination or process deviation.
4. Importance of Robust Process Control
Solder mask contamination, though sometimes overlooked, can lead to significant downstream failures, including field returns, increased rework rates, and customer dissatisfaction. By implementing preventive strategies, manufacturers can achieve higher yield rates and enhanced reliability.
With more than 10 years of expertise in PCB prototyping and fabrication, PCBYES strongly emphasizes root cause elimination and proactive process management. Our engineers implement stringent quality control protocols to ensure contamination-free solder mask application, resulting in superior product performance and consistency.
5. Impacts on End-Use Applications
In high-frequency PCBs, HDI boards, or boards designed for automotive and aerospace applications, even minor solder mask defects can lead to catastrophic functional issues. For example, impedance control lines affected by mask contamination may exhibit signal distortion or EMI/EMC failures.
Moreover, in consumer electronics, solder mask overspread can cause misalignment during automated SMT (Surface Mount Technology) assembly, resulting in machine errors or misplaced components.
6. Holistic Quality Assurance Strategy
Combating solder mask contamination requires a combination of design-for-manufacturing principles, process discipline, and continuous feedback from assembly partners. Manufacturers should also maintain open communication channels with PCB designers to ensure solder mask layers are correctly defined in the Gerber files.
At PCBYES, we offer PCBA turnkey solutions, integrating fabrication, component sourcing, and assembly services under one roof. By maintaining full control over the production chain, we ensure that critical quality issues such as solder mask contamination are addressed comprehensively and proactively. Our dedication to precision, customer satisfaction, and on-time delivery makes us your reliable partner in every stage of the PCB lifecycle.
Solder mask contamination is a preventable yet serious quality concern in PCB manufacturing. By identifying its root causes and implementing rigorous process controls, manufacturers can mitigate its occurrence and enhance the quality and reliability of the final PCBA. As the electronics industry continues to push toward miniaturization and higher performance, such quality practices will become even more indispensable.
